FFC Plant Digitalization Project

About the Client

Fauji Fertilizer Company (FFC) stands as one of Pakistan's most trusted and influential fertilizer manufacturers, with a legacy built on decades of industrial excellence and national contribution. As a flagship entity of the Fauji Foundation — one of Pakistan's most powerful industrial conglomerates — FFC operates state-of-the-art fertilizer complexes that serve the backbone of Pakistan's agricultural sector. Driven by a forward-thinking approach to plant management and operational efficiency, FFC partnered with 3D Engineering Surveys to bring their facilities into the digital age — ensuring their infrastructure is not only accurately documented, but intelligently equipped for the future.

Description of Work

3D Engineering Surveys is proud to have been awarded the Plant Digitalization Project for Fauji Fertilizer Company — one of Pakistan's most prominent industrial operators. This project exemplifies our capability to deliver end-to-end digital solutions for complex, large-scale process plants, transforming physical assets into fully intelligent, data-rich digital environments.

Leveraging cutting-edge laser scanning technology and our expertise in AVEVA E3D, we created a comprehensive digital twin of FFC's plant facilities — a powerful asset that will serve the client's engineering, operations, and maintenance teams for years to come.

Phase 1 – Precision Laser Scanning & Data Capture

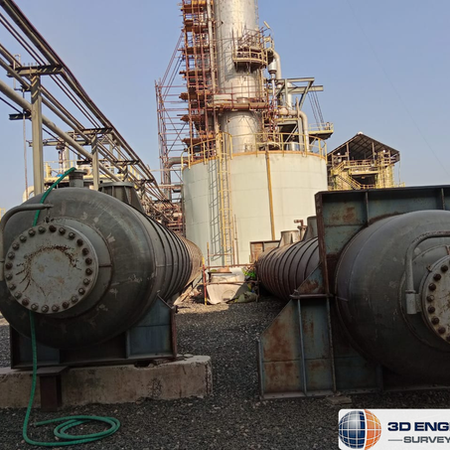

Our team deployed high-density terrestrial laser scanning across the entire plant, capturing all process areas, utility corridors, pipe racks, equipment structures, and supporting infrastructure with millimetre-level precision. The resulting point cloud dataset forms the authoritative survey record of the facility and the foundation upon which all intelligent modelling work is built.

Phase 2 – Intelligent 3D Modelling in AVEVA E3D

Using the captured point cloud as our reference, 3D Engineering Surveys developed a fully intelligent As-Built 3D model within AVEVA E3D — one of the industry's most advanced plant design and modelling platforms. The model encompasses every critical element of the facility, including:

• Piping Systems — Complete modelling of all process and utility pipelines, incorporating pipe routing, bends, reducers, flanges, and all inline components across every process area.

• Equipment — Precise 3D representation of all major and minor equipment, including vessels, columns, heat exchangers, pumps, compressors, and their associated structures.

• Structural Steelwork — Full modelling of pipe racks, platforms, access walkways, staircases, and all structural support systems.

• Supports & Cable Trays — Detailed modelling of piping supports, cable tray systems, and associated steelwork, ensuring a complete and accurate representation of the plant.

Intelligent Tagging & Asset Intelligence

What sets this project apart is the depth of intelligence embedded within the model. Utilizing client-supplied documentation — including P&IDs, equipment lists, line lists, and instrument indexes — the model was comprehensively tagged and enriched with:

• Equipment tag numbers and descriptions

• Instrument and valve tag numbers

• Pipeline line numbers and piping classes (Class 150, Class 300, Class 600, and beyond)

• Flow directions and pressure ratings

• Material specifications and valve types (gate, globe, check, butterfly, control, and more)

• A fully structured asset hierarchy, aligned with FFC's asset management framework

The result is not simply a 3D model — it is a living, queryable intelligence layer over the entire plant.

Phase 3 – Deliverables

Every deliverable was crafted to integrate seamlessly into FFC's existing workflows and future engineering endeavors:

• AVEVA E3D Intelligent 3D Model — A fully navigable, intelligent model purpose-built for plant operations, future modifications, and engineering reviews.

• Navisworks Federated Model — A consolidated model enabling multi-discipline review, clash detection, and broader team access without the need for AVEVA E3D licenses.

• Intelligent Isometric Drawings — Auto-generated isometrics complete with bills of materials, weld maps, and model-driven annotations.

• Layout & General Arrangement Drawings — Accurate plan and elevation drawings of key plant areas, extracted directly from the 3D model.

• Asset Hierarchy Documentation — A structured asset register ready for integration with FFC's maintenance planning and asset management systems.

This project is a testament to 3D Engineering Surveys' commitment to delivering world-class digital engineering solutions — on time, to specification, and built to last.

To find out how we can digitalize your facility, contact our team today.
